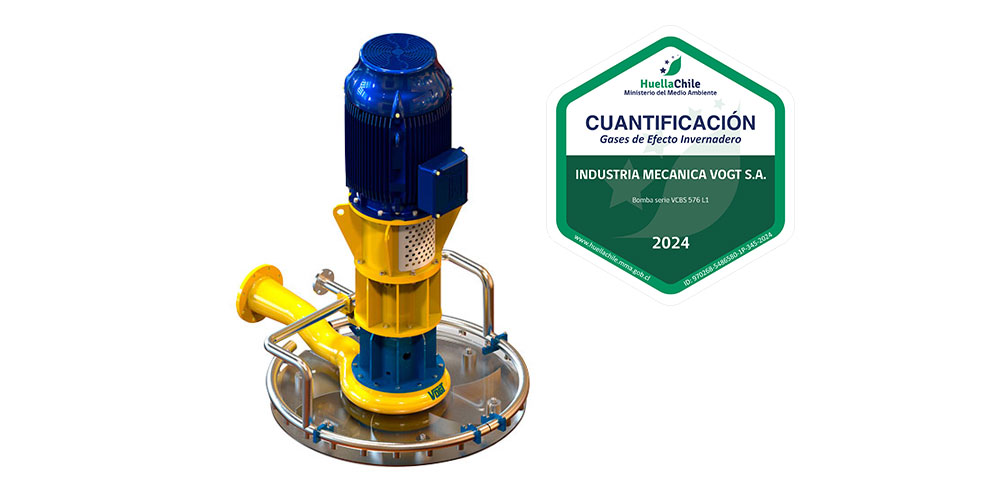

VCBS SERIES

The VCBS series «Vertical Cantilever Low Suction» is a patented model with low level suction capacity, they are even superior to dewatering pumps but with the robustness and simplicity of a centrifugal pump you get Heavy Duty performance.

They are single-stage centrifugal pumps with vertical shaft, bearing body execution, single volute casing, semi-open impeller without mechanical seal, VS5 cantilever design, fully cantilevered shaft without any type of support bushing.

Regarding its construction, the direct-to-floor lower suction plate allows recovering valuable solutions in non-metallic mining processes.

These equipments operate in adverse working conditions and affected by a great number of variables, both in the fluid composition and in the operating points and temperature variables, since they are located in the salt flats of the northern area of our country.

  • Capacity: @ 700 m3/hr
  • Head: @ 50 m.c.a.
  • Nominal Sizes: 25 mm (1”) hasta 150 mm (6”)

APPLICATIONS

  • Brine Transfer
  • Mine Drainage
  • Waste Liquids
  • Truck Washing
  • Pool Cleaning
  • Fresh water pumping
  • PLS-ILS-Refino Pumping
  • Solution Transfer
  • Tailings pond water recovery
  • Fluid Pumping from rivers, lagoons, reservoirs, etc.
  • Well Drying, Depletion or Drainage Systems
  • Plants of Riles and Industrial Applications in General
  • Seawater intake and impulsion to process plants
